ceramic pump
Information
- Product Name: ceramic pump
- Size: 0.5-1ml
- Category: Ceramic Pump
Description
AGILEEN provided advanced ceramic solutions for fluid dispensing and filling in the pharmaceutical, cosmetic and food industries. Using high-performance advanced ceramic materials, it has the properties of high hardness, wear resistance, high temperature resistance, corrosion resistance, and no pollution to the used medium. All materials comply with GMP regulations
Label
ceramic pump ceramic filling pump ceramic rotary valves ceramic piston pumpShare
Details
- Material : Alumina 99.5% /Zirconia

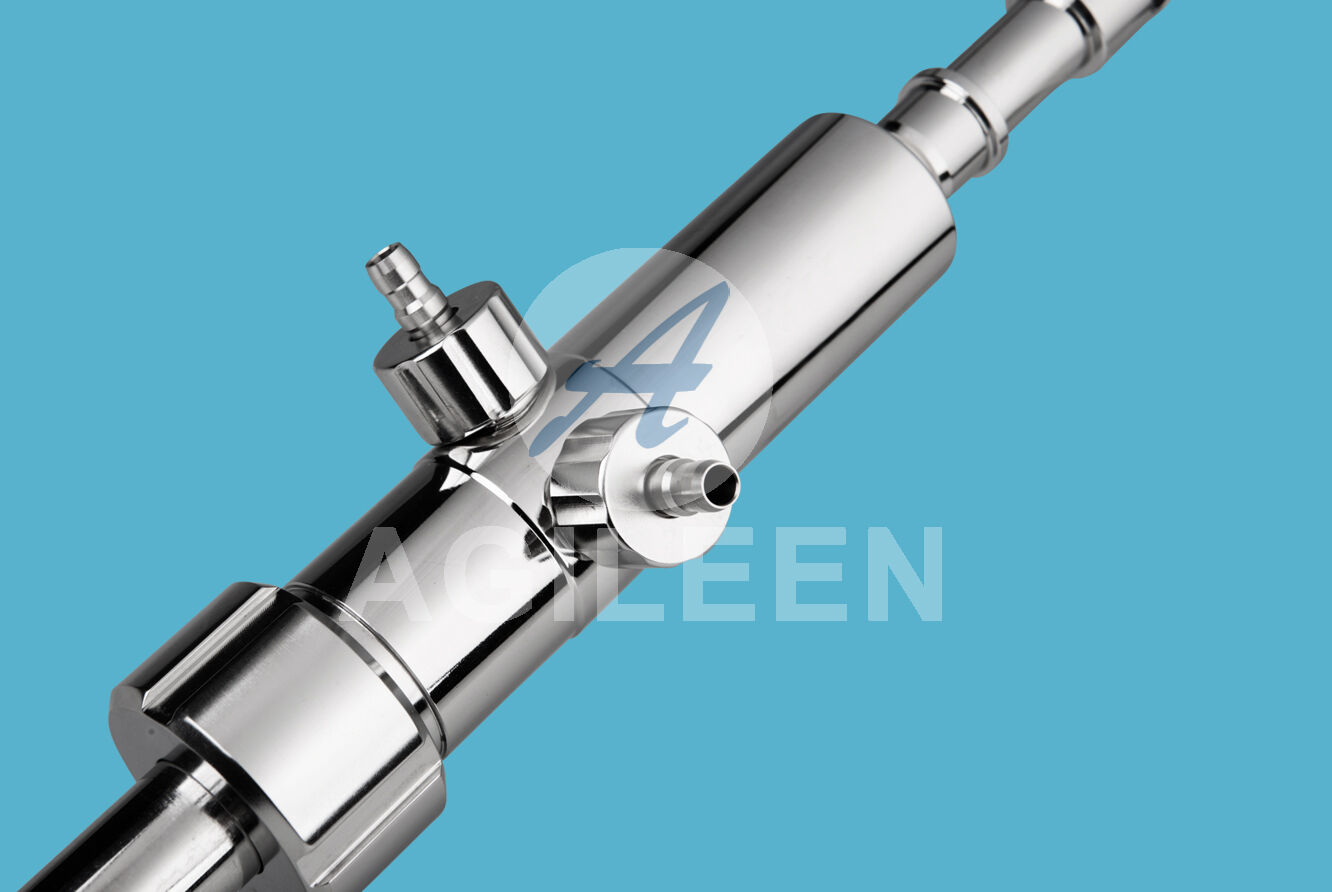

1, Our production of ceramic metering
pump structure is simple, by the ceramic pump, into and out of liquid control
rotary valve, metering rod, stainless steel inlet and outlet, O-ring and other
components.
2, the working principle of ceramic
pump:
The hole of the rotary valve is aligned
with the liquid inlet, the ceramic measuring rod moves downwards and generates
negative pressure,
Rotary valve hole aligned to the liquid
outlet, ceramic rod straight upward movement, resulting in positive pressure,
the discharge of liquid
